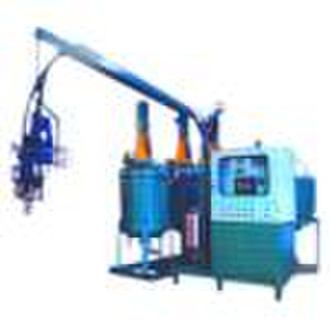

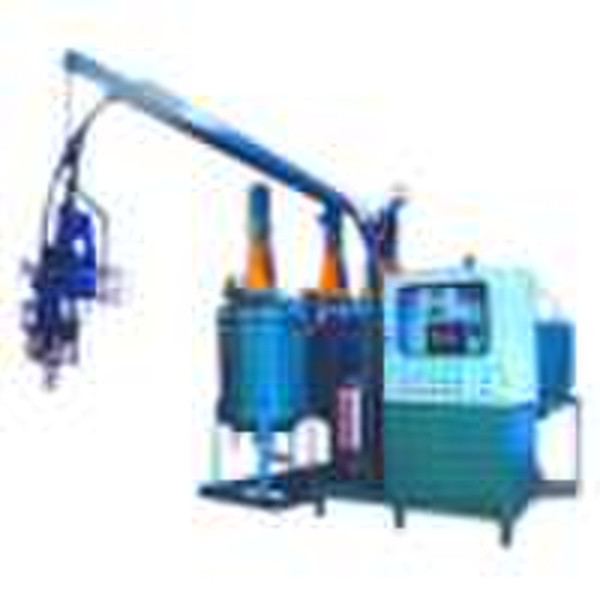

Phenolic Injection Machine

Phenolic low-pressure reaction injection machine is a kind of phenolic foaming equipment developed on our own, the advent of which has filled the domestic gap in this profession and is well-received. It works as follows: Phenolic resin liquid material and solidifying agent are, according to a certain blending ratio delivered into mixing head to agitate according to a certain ratio and then injected into mould. To get the equipment to satisfy technical requirement, parameters of material temperature, throughput, injection time are all program-controllable. The machine is durable adopting fine-quality anti-acid parts having to contact with solidifying agent. Main technical parameters Power supply 380 50HZ Total power 10-18KW Throughput 20-300g/s 5scales in total Material temperature 0-60°C Program-controlled points 12 Volume of loading tank 150 L or 300 L
