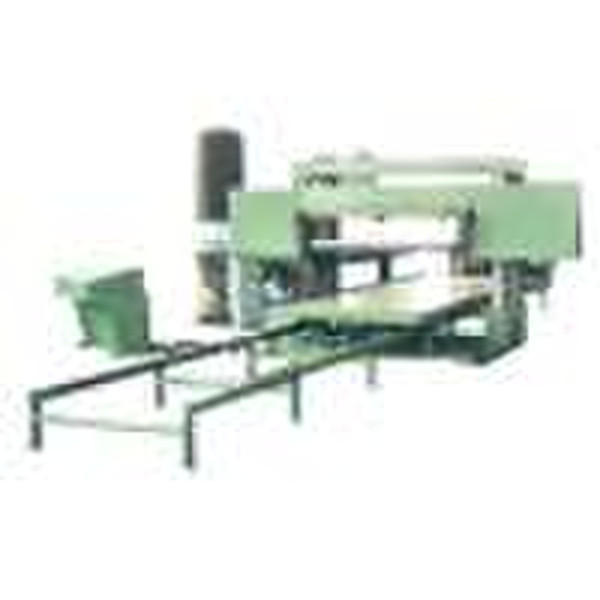

Horizontal Cutting Machine for Rigid Foam (Sawtoot

Features 1) Uses a wide sawtooth cutter to make high-speed cutting, which can guarantee precise size and increase material utilization ratio. 2) Cutting error is up to standard set by relevant department. 3) Foam surface after cutting leaves no cutting trace and is very smooth. 4) Mated with dust-sucking device in order to improve working environment. 5) Utilizes industrial computer to control cutting thickness. 6) Automatic cutter-raiser can automatically deduct cutting size automatically while feeding the cutter, and is able to stabilize slicing size. 7) Two operating modes, namely auto and manual, which have the functions of easy computer setting, photoelectric display, and convenient and fully automatic operation. 8) Replaceable and easily adjustable steel frame on the worktable is adopted to fix rigid foam. Specifications: 1) Width range of slicing: 20 - 150mm 2) Slicing width (max.): 1,700mm 3) Size can be cut (max.): 2,500 x 1,700 x 700mm 4) Running speed of worktable: <12m/min (infinitely frequency variable) 5) Worktable size: 3,000 x 1,800 mm 6) Total power: 6kW 7) Total weight: 3,000kg
